7 inch binocular live face recognition machine (1)
7 inch binocular live face recognition machine (2)
7 inch binocular live face recognition machine (3)
TVPS1002-I7-N21Q

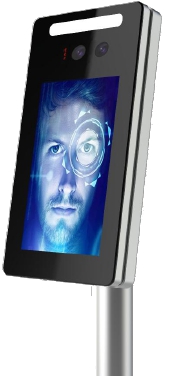

7-inch binocular live face recognition All-in-One Machine
Get more information
  • Face / ID / QR code and other verification methods
  • Wechat applet/mobile APP/personal ID verification terminal and other visitor registration methods

This product is a new generation of face recognition all-in-one machine independently developed by the company. It adopts the newly developed face recognition algorithm, and uses the uniqueness of face features to accurately identify and confirm the access authority of personnel. It can be widely used in schools, office buildings, residential quarters and large parks.

It can be used to control pedestrian access gates, and can also be used for access control management. Support face and ID card (optional), smart IC card (optional), QR code (optional) and other verification methods.

The product is equipped with a background management system for users to query the face and historical data in the warehouse. Various visitor registration methods such as WeChat applet, mobile application APP, and personal ID verification self-service visitor terminal can be deployed together to adapt to different scenarios flexibly.

MOre Put away
Consult now

This product is a new generation of face recognition all-in-one machine independently developed by the company. It uses the latest face recognition algorithms and the uniqueness of facial

features for precise recognition to confirms the passage rights of personnel. It can be widely used in schools, office buildings, residential communities, and large parks.

It can be used to control pedestrian passage gates, as well as for access control management. Supports face and ID card (optional), smart IC card (optional), QR code (optional) and other verification methods.

The product provide a management system for users to query the face and historical data. It can be equipped with various visitor registration methods such as WeChat mini-programs, mobile app, and self-service visitor terminals for identity verification, to adapt to different scenarios.


Supports Binocular live detection;

Unique live face recognition algorithm, accurately recognizes faces, face recognition time is less than 0.8 seconds;

Average MTBF > 50000H;

Supports face tracking exposure in strong backlight environment;

Working temperature: -30℃ to +60℃;

Supports TF card storage, images can be stored continuously for 1 year, videos can be stored continuously for 1 month or longer (depending on the capacity of the selected TF card);

The camera uses H.265 Main Profile encoding and the video stream is directly connected to storage devices such as NVR through the ONVIF protocol;

Rich interface protocols, support HTTP protocol and SDK under various platforms such as Linux/Windows;

Outdoor IP65 waterproof and dustproof;

Linux operating system, better system stability;

Supports 10,000+ face comparison libraries and 100,000 recognition records;

Supports an external ID card reader;

Supports connecting to a door control host or Wiegand reader through international standard Wiegand protocol (WG26/WG34);

Supports local management, inquiry and configuration after logging in;

7-inch IPS full-view high-definition screen, no trailing or delay of image.


Product model

TVPS1002-I7-N21Q

Product name

7-inch Binocular Live Face Recognition All-in-One Machine

Hardware


CPU

Dual-core processor,1G memory,16G storage

OS

Linux

Storage

TF card

Camera

Binocular210MP1920×1080

Sensor

1/2.8" Progressive Scan CMOS

Lens

6mm

4G

Optional

WiFi

Optional

Bluetooth

Optional

Speaker

The audio content can be customized

Performance


Recognition height

1.2~2.2mAngle adjustable

Recognition distance

0.5~1.5m

Face angle

Horizontal 30d°,vertical 30°

Recognition time

< 0.8s

Face capacity

10000

Storage capacity

10,000 capture records

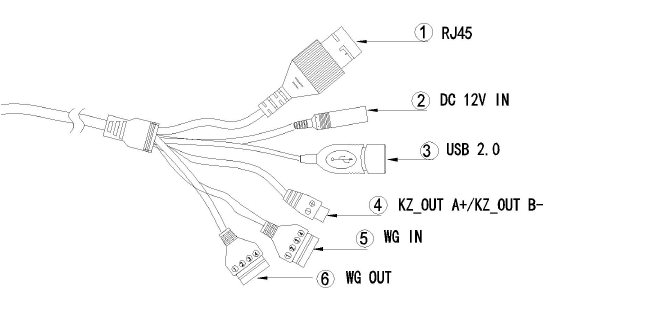

Interface


Digital I/O

1 digital out, other GPIO ports can be customized with lines

Audio

Mic input, speaker output

Ethernet

1 RJ45 10M/100M ,customizable gigabit Ethernet port

Wiegand

1 Weigand in, 1 Weigand out

USB

1 USB port as a device and 1 built-in USB port can be set in OTG mode

Camera parameters


Camera

binocular cameravisible light and near-infraredliving body dynamic

Effective pixels

210MP1920×1080

Minimum illumination

color:0.01Lux@F1.2(ICR)black & white:0.001Lux@F1.2(ICR)

Signal-to-noise ratio

≥50db(AGC OFF)

Wide dynamic range

100dbISP algorithm face local exposure

Video encoding

H.265 Main Profile /H.264 BP/MP/HP/MJPEG

Resolution

Mainstream

50Hz:25fps(1920×1080,1280×720)

60Hz:30fps(1920×1080,1280×720)

Sub-stream

720×5761-25(30)fps /640×4801-25(30)fps

320×2401-25(30)fps

Functions


Web-based Configuration

Support

Remote Device Upgrade

Support

Deployment Method

Public and local network

General Parameters


Operating temperature

-30℃+60℃

Operating humidity

0 to 90% relative humidity, no condensation

Salt mist level

Above Rp6

Anti-static

Contact ±4KV, Air ±8KV

Power supply

DC12V/3A

Protection level

IP65

Power consumption

12W(MAX)

Dimensions

128(L)×28(W)×240(H)mm

Pole hole diameter

36mm

Screen specification

7 inch IPS high-definition screen

Device weight

1.5kg
